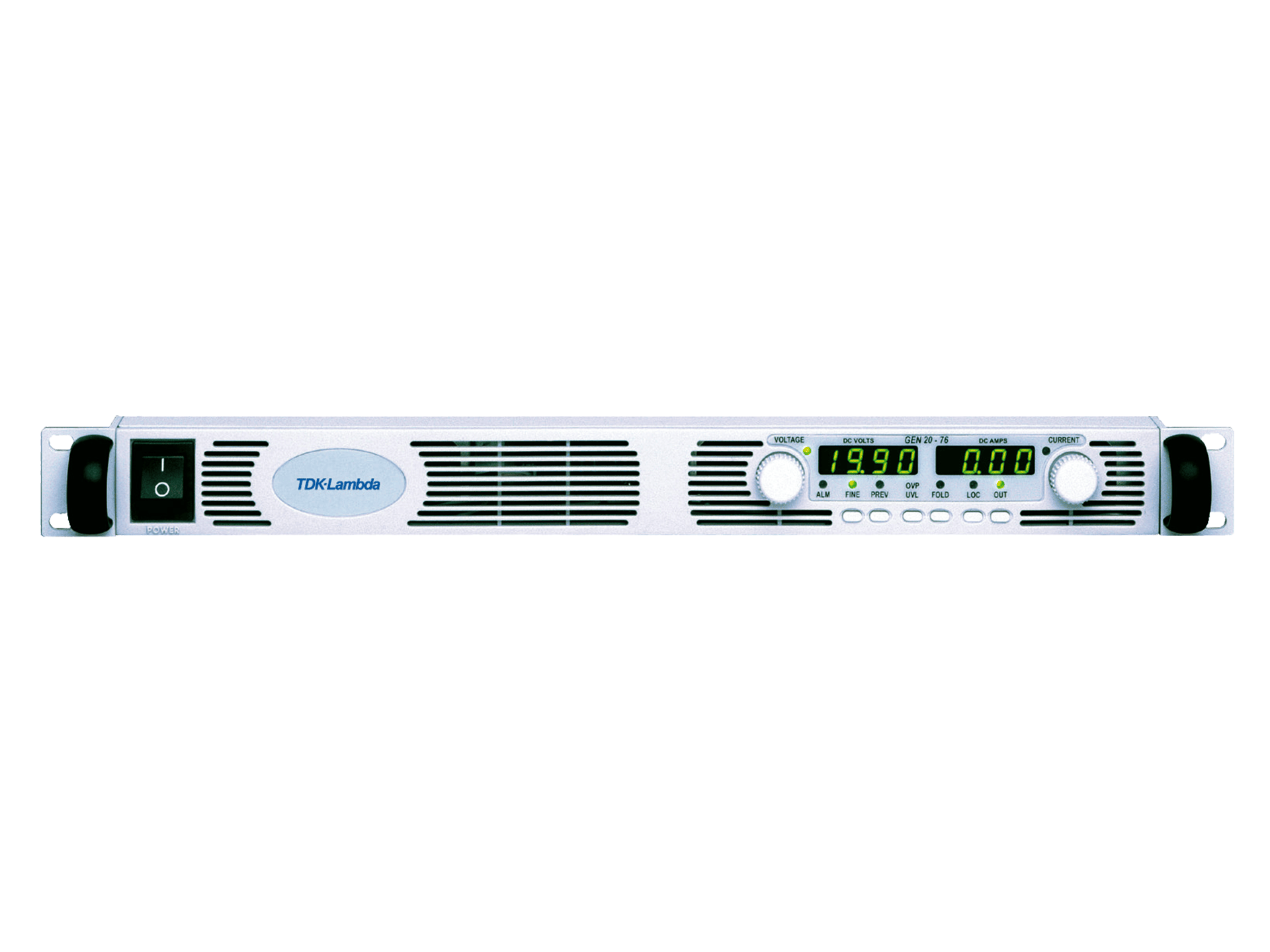

The programmable power supply TDK Lambda GEN-300-5 is an advanced DC power source designed for the most demanding laboratory and industrial applications. The device offers a wide range of voltage 0…300 VDC, current up to 5A, and power 1.5kW, all enclosed in an exceptionally compact, full-size 19’’ rack enclosure with a height of only 1U. It is the perfect solution wherever precision control, parameter repeatability, and integration capabilities with advanced measurement systems are crucial.
Thanks to the use of high-class 16-bit A/C and A/C converters, the device provides exceptionally accurate voltage and current regulation, both in CV and CC modes. The dual digital LED display offers a current overview of operating parameters and settings, making it easier to use. The power supply supports automatic switching modes CV/CC, has a Front Panel Lock function, memory of last settings, and a choice of Auto Re-Start or Safe Start mode, making it exceptionally versatile in professional applications.
GEN-300-5 also stands out with broad communication capabilities. It is standardly equipped with an RS232/RS485 interface, allowing for remote control and programming.
The device is designed for continuous operation in industrial conditions – it features high parameter stability, low ripple and noise, and full protection against overload, overvoltage, and overheating.
The power supply allows for parallel operation in master/slave mode, enabling multiplication of the output current, as well as series connection to achieve higher voltages – up to 600V. Thus, GEN-300-5 is effective both as a standalone, precise DC source and as part of a larger power system.
Applications include research and development laboratories, electronics production, system testing, industrial automation, and any applications requiring stable and precise programmable power.
