Are exhibiting at Southern Manufacturing & Electronics on 3rd–5th February 2026 and invite you to visit them on stand E70 catch up on some of the new connector developments since the last show.

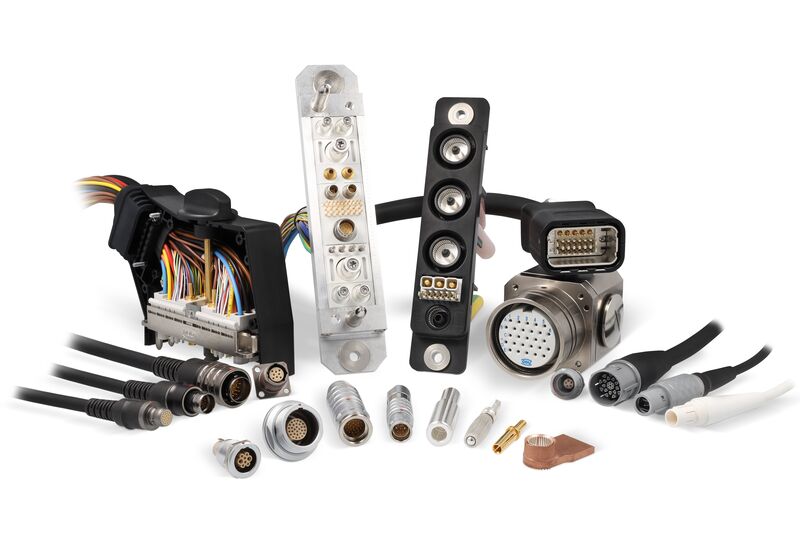

ODU MINI-SNAP®
Robust metal circular connectors in four series: L, K, B, and F – each with push-pull locking or break-away and with solder, print or crimp terminations.
Up to IP68 and over 5,000 cycles and an interface diameter of 6.4 mm.
Series L, K, and B – pin & groove coding, with 20 – 40 contacts
Series F– half-shell, up to 27 pins
ODU MEDI-SNAP®
Space‐saving design, high contact density, and right-angled options, the plastic-bodied ODU MEDI‐SNAP® ensures top performance. Push‐pull or break‐away with mechanical & optical coding. High‐voltage up to 1,000 VAC, touch protection IEC 60601–1 (2 MOPP / 2 MOOP), fully sterilizable, minimal installation and maintenance.
ODU-MAC® Rectangular High Current
High-Current Modules have now been added with reliable 12mm contacts and
conductor cross-sections of 25mm², 35mm² or 50mm² available.
Rectangular Push-Lock Medical – an ODU-MAC® Blue-Line connector tailored to medical use – compact, easy handling with maximum flexibility, incorporating an intuitive push-pull locking mechanism ensuring a fast, secure and error-free connection.
The modularity of the system allows individual adaptation to the specific requirements of the application, including the transmission of signal, data and power.
ODU-MAC® Mass Interconnect range adds a half-rack Compact Class
The existing varients of the ODU-MAC® Black-Line offer up to 4,608 signal points, making them real heavyweights in test and measurement. However, not every customer needs this, hence the new Compact Class – half the width of a classic 19 inch test cabinet and offering up to up to 1,536 signal points.
ODU-UK Ltd tel: 0330 002 0640
